- Place of Origin: china
- Brand Name: liuxing
- Model Number: TMR
technical features
● Can quickly open, chop large round, square bales
● After the unloading material box clean, leaving no material left
● Zigzag double-sided blade is made of special alloy material, which is sturdy and durable, reducing maintenance cost.
● The bottom chamber and the tank are made of thick steel plates and can withstand long-time stirring.
● Install anti-overflow device on top of car
Performance characteristics:
· This machine is a new breed of cattle breeding equipment developed on the basis of digesting foreign advanced technology. It can directly mix and stir various hay, farm straw, silage and other fiber feeds and concentrate feeds.

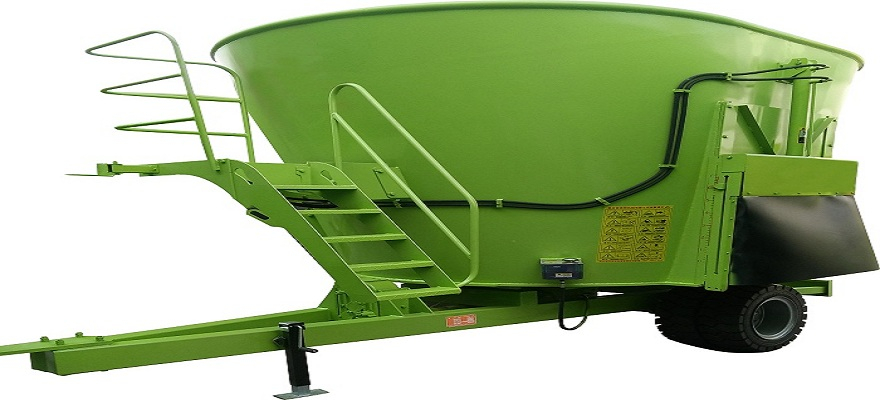

· The traction TMR feed mixer is equipped with stirring, mixing, and scattering in one unit. It can be directly hauled by the tractor, mixed while moving, and directly sprinkled in the cattle farm to save time and labor.
· Fixed TMR feed mixer has ground-type and underground-type, our company can customize the placement of drawings for you to use faster.
· With automatic weighing device, adding amount is set at any time, with accurate measurement of the weight of each batch of materials, so that cattle farm feed ratio is more reasonable.
· Make full use of various forages and crop straws without destroying the fiber components to maximize the energy efficiency of the feed.
·High feed uniformity, balanced energy intake, and increased milk production.
· Improve the farm management level and production efficiency, reduce labor intensity.
·Made of manganese steel blades, resistant to friction.
· Cows, beef cattle, sheep, etc. can all be used to increase efficiency.
- Place of Origin: china
- Brand Name: liuxing
- Model Number: TMR
【Technical Parameters】
Fixed vertical 8 cubic | Fixed horizontal 9 cubic | ||
Overall size (mm) | 3600×2200×2600 | Overall size (mm) | 4400×2100×2100 |
Machine weight (kg) | 2500 | Machine weight (kg) | 2800 |
Production efficiency (kg/h) | 3500 | Production efficiency (kg/h) | 4500 |
Number of blades (pieces) | 12 | Number of blades (pieces) | 140 |
Supporting power (KW) | 22 1.5 (hydraulic) | Supporting power (KW) | 11 11 1.5(hydraulic) |
Box material | Vertical bottom shell 18-20MM thickness, Box thickness 8MM, box material Q345B manganese plate | Box material | Vertical bottom shell 18-20MM thickness, Box thickness 8MM, box material Q345B manganese plate |
Dragon blade thickness (mm) | 16 |
