- Place of Origin: Taian
- Brand Name: liuxing
- Model Number: 9QQ

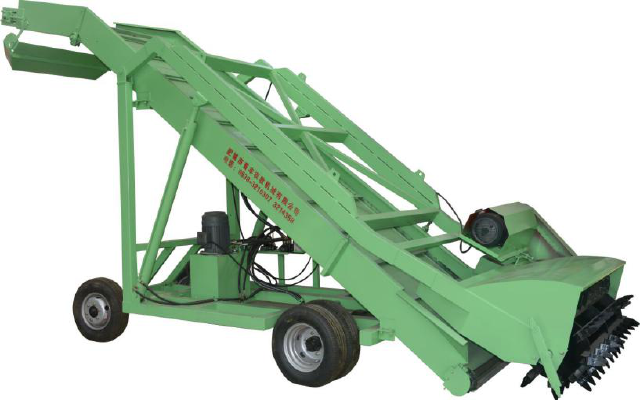

Function: The silage reclaimer is a kind of reclaimer, which has the functions of reclaiming, conveying, shredding and so on. It is widely used in pasture dairy. The height of the product is suitable for various specifications of silos, the highest height of the material. Can reduce labor, labor time, reduce labor intensity. Improve silage quality, prevent secondary fermentation, reduce the incidence of dairy cows. The height and width of the material can be used with the car-mounted, traction mixer work. Advanced feeding and conveying mechanism by a switch control, easy to switch, advance and retreat freely. Machine frame with thick material and stable structure, to prevent the work of the equipment caused by the swing of the accident. The take-up roller blade is made of premium reinforced tungsten alloy blades that are durable and smooth to cut.
Main structure: The machine is composed of frame welding (using high strength rectangular tube, strong carrying capacity), conveying mechanism, traveling mechanism, material removing device, steering mechanism, hydraulic system and electrical control system. With a brand new series of independent innovation models, using hydraulic control / four-wheel drive. The utility model has the characteristics of reasonable structure, reliable performance, sufficient power, flexible operation, high production efficiency and strong adaptability, and is a special machinery for loading silage in the livestock husbandry and breeding community.
Features
1. Mechanized operation, efficient, standardized, save labor, reduce costs and improve work efficiency ten times.
2. The whole frame is made of thick material to prevent work-related accidents caused by equipment swinging.
3. Chain scraper thicker square tube to prevent the force deformation
4. Reduce irregular sourcing caused by silage waste, improve feed utilization.
5. Take the tidy and tidy cross section, reduce the nutrient loss of silage.
6. Improve the quality of silage to prevent secondary fermentation, reduce the incidence of cows.
7. Pick-up process, so that silage is fully stirred, nutrient distribution more evenly.
8. Self-propelled design, power, hydraulic drive, easy and quick operation.
9. Material height for a variety of silos.
- Place of Origin: Taian
- Brand Name: liuxing
- Model Number: 9QQ
project | 9QQ1600-5 | 9QQ1600-6 | 9QQ1600-7 |
Total Weight(t) | 2.7 | 2.8 | 3 |
Dimensions(mm) | 5160x1680x3550 | 6818x1680x3570 | 7325x1680x3570 |
Pick-up height(mm) | 5000 | 6000 | 7000 |
Hob width(mm) | 1600 | 1600 | 1600 |
Transport loading height(mm) | 3300 | 3300 | 3300 |
Hob motor power(KW) | 7.5 | 7.5 | 7.5 |
Pump station motor power(KW) | 5.5 | 5.5 | 5.5 |
Walking motor | BM2-400 | BM2-400 | BM2-400 |
Transport motor | BM2-400 | BM2-400 | BM2-400 |
Total power(KW) | 13 | 13 | 13 |
Roller rated revolutions(r/min) | 160 | 160 | 160 |
Drum blade（Pieces） | 94 | 94 | 94 |
